EPSON L5190: Loading Paper in the Sheet Feeder.

Step 1.Pull out the paper support.

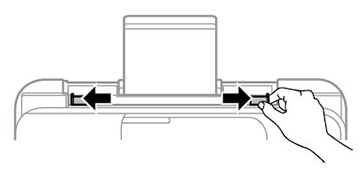

Step 2.Slide the edge guides out all the way.

Step 3. If you are inserting a stack of paper, fan the sheets first and tap the stack on a flat surface to even the edges.

Note: Do not fan or curl photo paper.

Step 4.Do one of the following:

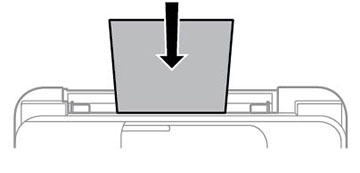

1. Insert paper, glossy or printable side up and short edge first, in the center of the paper support.

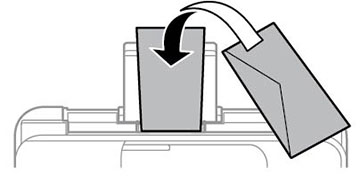

1. Load up to 10 envelopes in the center of the paper support. Load them printable side up and flap edge left.

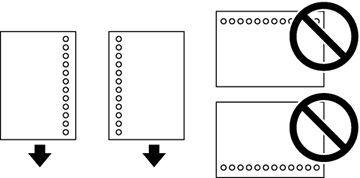

1. Load a sheet of loose-leaf or other paper with holes facing as shown.

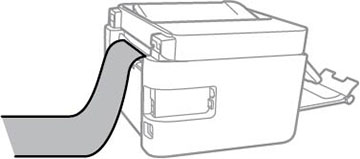

1. To load a sheet of paper longer than legal size, close the paper support, then load the leading edge of the paper as shown.

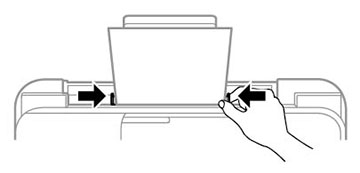

Step 5.Slide the edge guide against the paper, but not too tightly.

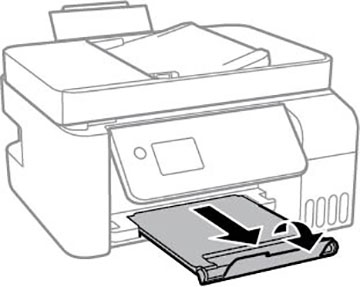

Step 6. Pull out the output tray.

Step 7. If prompted by the product's LCD screen, select the size and type of the paper you loaded and press the OK button.
